| Place of Origin: | Zhejiang |
| Brand Name: | NANTE |
| Certification: | CE |
| Model Number: | ST |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | usd1/pc |
| Packaging Details: | carton |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000pcs/year |
| Wheels: | Plastic | Carrier Body: | Plastic |
|---|---|---|---|
| Hardware: | Galvanized | Support Saddle: | Plastic |
| Color: | Yellow | Speed: | Max. 100m/min |
| Highlight: | c rail festoon system,festoon cable systems |
||

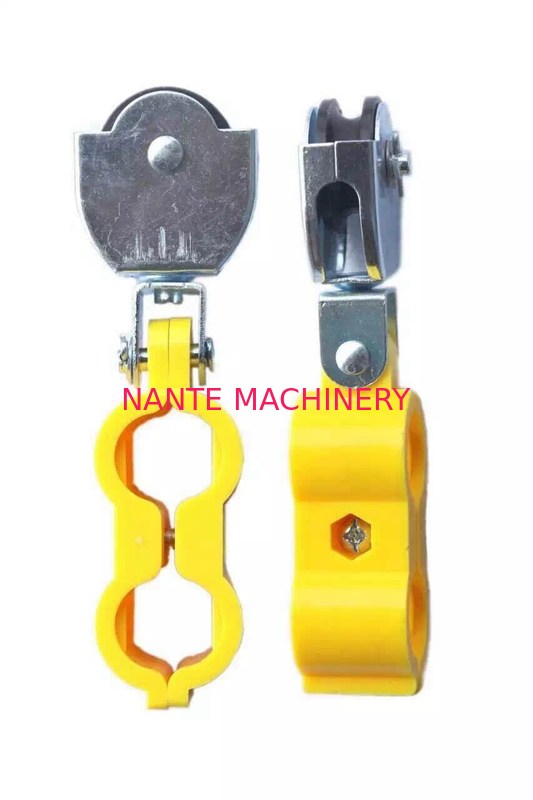

1. Steel Wire Festoon System for Round Cable
2. Delivering power&control to mobile equipment
3. Safe, efficient
Detailed Product Description
Steel Wire Festoon System for Round Cable, Galvanized Steel Conductor Rails With Brass Dowel, Rope and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.
Steel wire trolley applied to light load mobile power supply device, easy to install, low cost.
Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method. This festoon system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.
Application
Steel Wire systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc, suitable for small cable loads.
Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation
| Type | ST--12/14 | ST--14/16 |
| Wheels | Wheels: plastic | |
| Temperature resistance Lub. Grease of wheels: -30°C to +85°C | ||
| Travelling speed: ca. 100 m/min. | ||
| Material | Carrier body: plastic Support saddle: plastic | |
| Hardware: galvanized | ||
| Max. cable load | max.6KG | max.7KG |
| Dim. of Cable (mm) | max.D1/D2 = 12/14 | max.D1/D2 = 14/16 |
| Weight(kg) | 0.08 | 0.09 |
